項目 |
Unit |
CK6160Q |
|
大加工輪轂直徑 |
Inch |
24＂ |
|
X軸大行程 |
mm |
320 |
|
主電機功率 |
kw |
4 |
|
導軌寬度 |
mm |
260 |
|
大加工工件長度 |
mm |
500 |
|
輪轂測量方向 |
X、Z | |
|
測量工具 |
mm |
激光或探針（二選一） |
|
測量方法 |
激光掃描或者探針點測 | |
|
程序優化 |
全自動和手動 | |
|
輪轂加工程序儲存數量 |
100000 | |
|
數控系統 |
自主研發 | |
|
輪轂加工 |
表面 | |
|
機床加工精度 |
IT6~IT7 | |
|
表面光潔度 |
um |
Ra0.8~1.6 |
|
主傳動形式 |
無極調速 | |
|
主軸調速范圍 |
rpm |
工廠設定50-1000 |
|
快速移動速度 |
mm/min |
X :5000 Z :8000 |
|
重復精度 |
mm |
X :0.01 Z :0.015 |
|
刀架形式 |
排刀、手動刀架、電動刀架 | |
|
車刀刀柄尺寸 |
mm |
25×25 |
|
機床外形尺寸(L×W×H) |
mm |
1900×1400×1750 |
|
機床凈重 |
kg |
1100
|

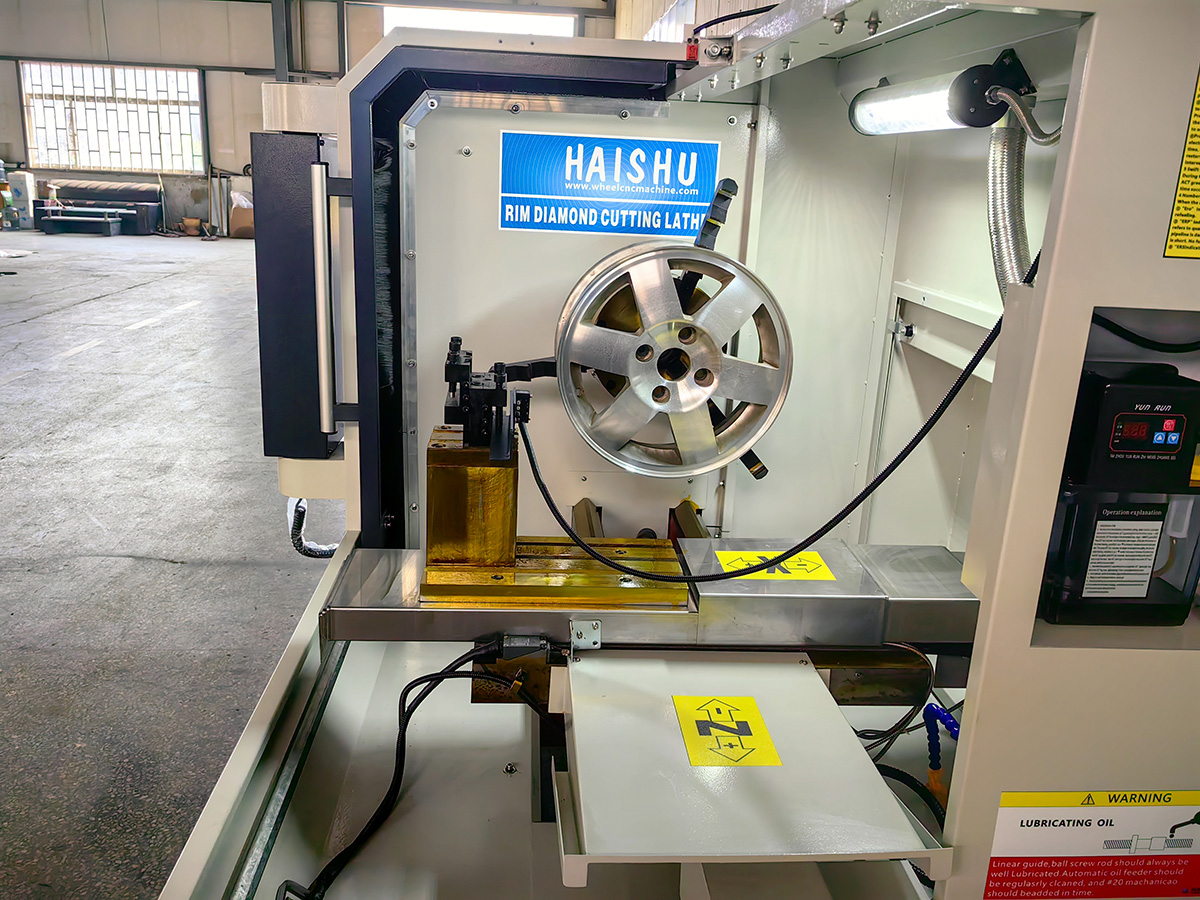

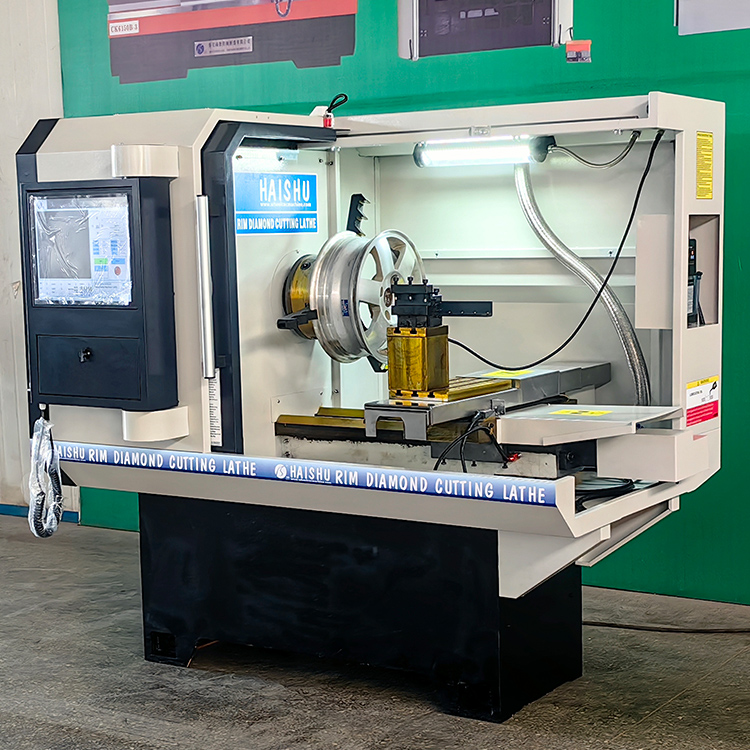

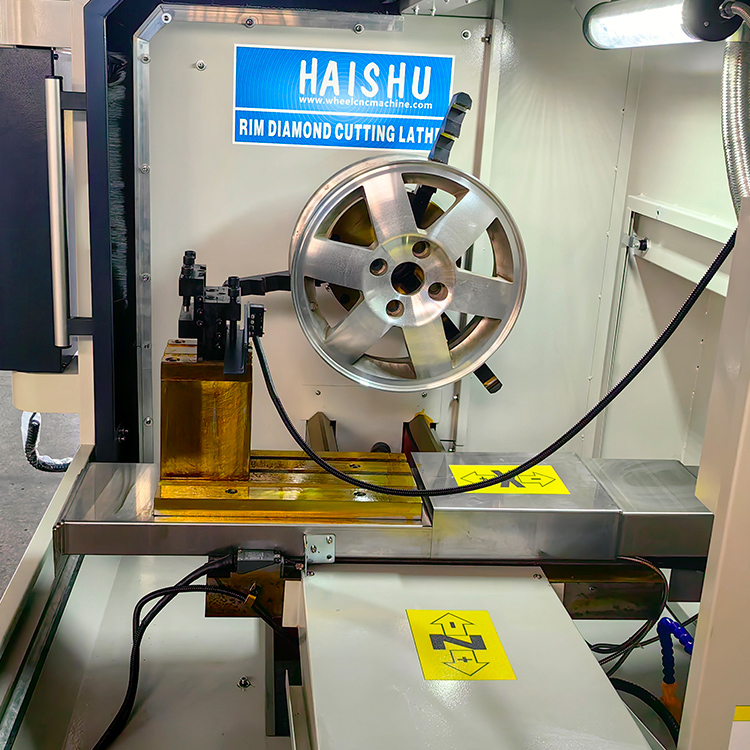

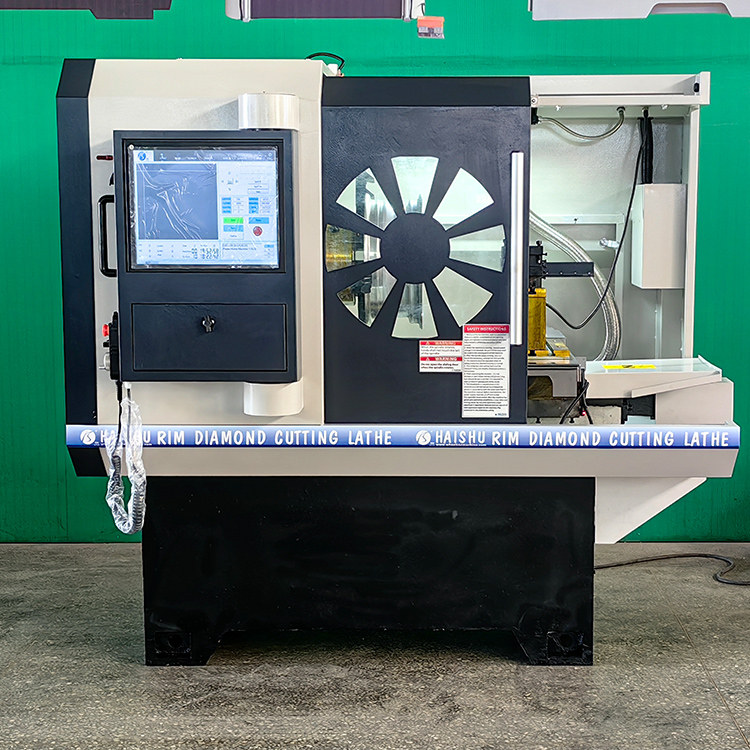

這款汽車輪轂拉絲機是專門為修復和翻新汽車輪轂設計的輪轂拉絲機?？梢孕迯?fù)的尺寸范圍在24吋以內。采用了由海數專心研發和升級的系統，經過了10多年的產品升級已經成熟。
These models are gear wire drawing machines specially designed for repairing and refurbishing car wheels. The size range that can be repaired is within 24 inches. It adopts the system developed and upgraded by Haishu. After more than 10 years of product upgrades, it has matured.
而且在探測方面我們采用了激光探測，探針探測，刀尖探測多種方式。
In terms of detection, we have adopted various methods such as laser detection, probe detection, and knife tip detection.
刀架方式也是有排刀架，手動刀架，電動刀架的方式。
The knife rest mode also has row knife rest, manual knife rest and electric knife rest.
輪轂夾具也擁有中心軸夾緊和卡盤夾緊，氣動夾緊，電動夾緊等方式
The rotary fixture also has central axis clamping and chuck clamping, pneumatic clamping, electric clamping and other methods
海數牌數控儀表車床，主要型號：CK0632A、CK6040A、CK0660A、CK0680A、CK06110A等。型號多，規格全，深受國內外客戶的歡迎。海數公司生產的數控儀表車床可以是標配的，也可以根據客戶具體要求進行定制，可以實現自動送料、自動裝夾、自動加工、自動接料等全自動化，并實現批量生產和銷售。
